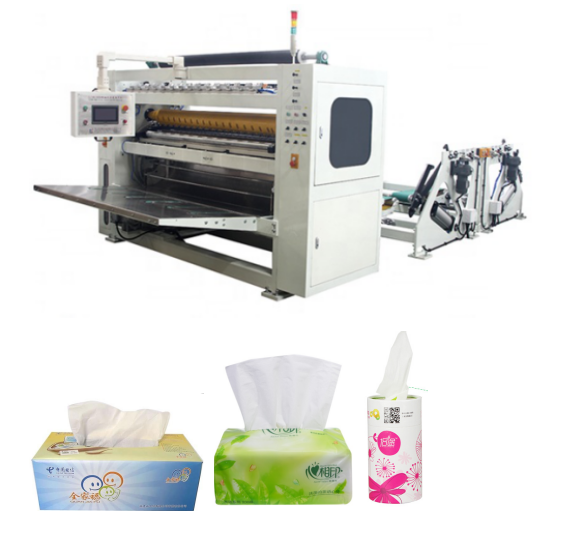

6pcs/Row Paper Converting Equipment , 4plys Tissue Paper Converting Machine

Name: 6pcsRow Paper Converting Equipment 4plys Tissue Paper Converting Machine
Brand: ZODE
Price: 20000 USD

Quality 6pcs/Row Paper Converting Equipment , 4plys Tissue Paper Converting Machine for sale

Brand Name : ZODE

Model Number : ZD-B100

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : USD 20000-300000

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 60 sets per month

Delivery Time : 30-60 days

Voltage : 380V,220V50HZ/380V50HZ,220/380/480 volt,3 Phase,220V 50Hz

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field installation,commissioning and training,Online support

Product type : Paper Napkin Machine,Paper making machinery,facial tissue making

Warranty : 1 Year

Processing type : Paper Slitting and Rewinding Machine,Paper Folding Machine,paper making machine

Raw material : jumbo roll

Name : Full Automatic Facial Tissue Paper Production Line

Output paper : Facial Paper,Napkin Paper

Type : Paper Producton Line,PAPER CONVERTING MACHINE

Application : Paper Industry,Producing,Paper making field

Product name : Hand towel tissue paper making machine full production line,High Speed Facial Tissue Paper Making Machine

Contact Now

Automatic Interfolder Facial Tissue Paper Cutting converting Making Machine

Full Automatic Soft/Box Facial Tissue Folding Machine

Parent reel width	from 420 to 2950mm other please specify
Output unfold size	190*210mm(Other specification, please specify)
Output folded size	95*210mm
Diameter of jumbo roll(mm)	￠1500(Other specification, please specify)
Core inner dia. of jumbo roll	76mm(Other specification, please specify)
Production speed	120 meter/min. 600 sheets/line/min total 3600 sheets/min
Folding type	V fold 1/2/3/4 plys
Embossing unit	Steel to Rubber (Embossing unit is made by Laser carving)
Power	3 phase, 380V/50HZ,
Procedure Controller	PLC
Cutting system	point cut by pneumatic type
Vacuum system	22 KW Roots vacuum system
Pneumatic system	3P Air compressor ,minimum pressure 5kg/c㎡ Pa( prepared by customer)
Host power	7.5 KW
Overall dimension	6000×2300×1920 mm
Machine weight	2.5T

Automatic Facial Tissue Transfer

6pcs/Row Paper Converting Equipment , 4plys Tissue Paper Converting Machine

Full Automatic Facial Tissue Log Saw Cutting Machine

Apply to automatic cut off facial tissue, hand towel, toilet rolls(paper core needed to customized).

It adopts Siemens PLC and men-machine interface operation system, can be flexibly changed the time of sharpening, cutting speed, cutting length.

With safety protection designed, it is safe and reliable operation.

Using the inverter speed control and servo tracking control system, combined with the light, electricity and gas, the cutting length is accurate and the finished product is neat.

Full Automatic Single Facial Tissue Wrapping Machine

Capable of wrapping facial tissue, napkin and hand paper towel.
Tissue feeding controlled by various frequency motor. Film holes punching, film release positioning, film cutting, form-fill-seal all servo driven and controlled. With high motion configurations, it is high efficient, easily operated and high flexibility. Fast formats changeover, conveniently maintained and cost-effective.

Total 11 highlighted configurations: tissue alignment function,overflow product jam avoidance function,electronic correction function,tooling re-use function,motion speed auto adjusted function,tissue over length protection function,tissue over width protection function ,flight sticks magnetic clutch protection function,heat resistant belt protection function,tissue hook reshaping function,infeed overload clutch protection function

Full Automatic Facial Tissue Bundling Packaging Machine

Name	Technical Parameters
Output	15-20 bags/min
Size range bag Max	L600W420H120 (mm)
Configuration	1-2 row,3-6 pieces in one row
Packing arrangement	horizontal packing OR vertical packing
Power supply	380V50HZ
Mini air pressure requirement	5Mpa
Packing Film	PE precast bag
Surface	carbon steel
Power consumption	11KW
Machine size	L2600W1500H1950 (mm)
Machine weight	1500kg

Full Automatic facial tissue box packing machine

6pcs/Row Paper Converting Equipment , 4plys Tissue Paper Converting Machine
